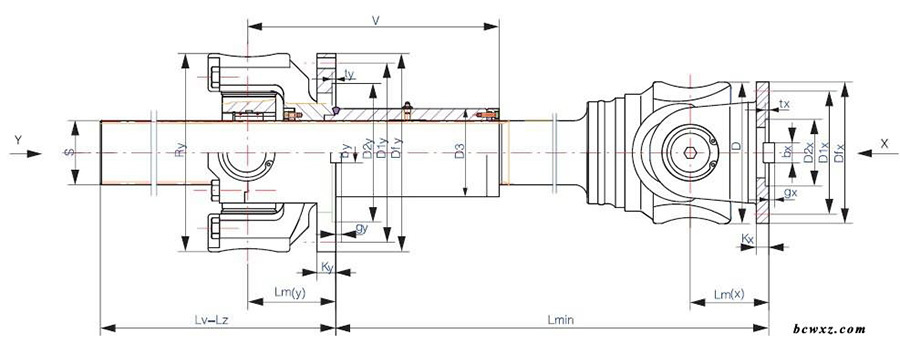

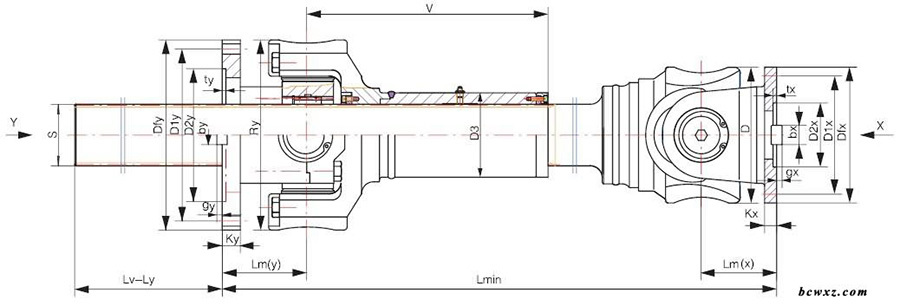

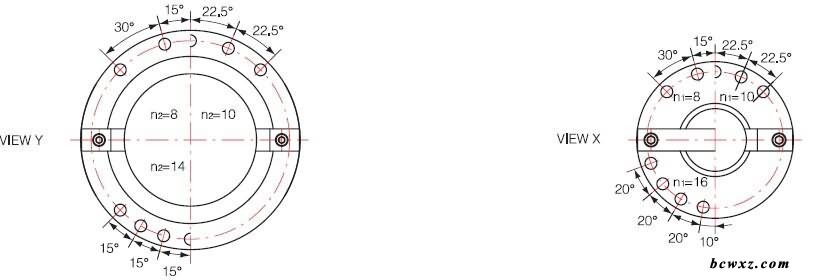

Type	Gyration diameter Dfx/Dfy	torque Tn kn.m	Fatigue torque Tp kn.m	Axis angle β(°)	Expansion capacity Lv(mm)	Size(mm)
Type	Gyration diameter Dfx/Dfy	torque Tn kn.m	Fatigue torque Tp kn.m	Axis angle β(°)	Expansion capacity Lv(mm)	Lmin	Dfx	D1x	D2x	bx	tx	gx	Kx	Lm(x)	Dfy	Ly
KSWC225	225/315	56	28	5°/15°	650	920	225	196	105	32	5	9	20	125	315	190
KSWC250	250/330	80	40		700	1020	250	218	115	40	5	12.5	25	140	330	200
KSWC285	285/390	120	58		750	1140	285	245	135	40	7	15	27	160	390	230
KSWC315	315/435	160	80		750	1300	315	280	150	40	7	15	32	180	435	250
KSWC350	350/480	225	110		800	1445	350	310	165	50	8	16	35	195	480	290
KSWC390	390/520	320	160		800	1605	390	345	185	70	8	18	40	215	520	320
KSWC440	440/600	500	250		900	1760	435	385	200	80	10	20	42	260	600	390
KSWC490	490/650	700	350		900	1955	480	425	225	90	12	22.5	47	290	650	410

Type	Size(mm)													weight(kg)
Type	D1y	D2y	by	ty	gy	Ky	Lm(y)	n1-d1	n2-d2	S	D3	V	Ry	Lmin	increase 100mm
KSWC225	285	220	32	5	9	28	140	8-Φ17	8-Φ17	102.18	146	395	315	215	6.4
KSWC250	315	240	40	7	12.5	30	150	8-Φ19	8-Φ19	117.72	159	435	330	283	8.5
KSWC285	355	270	40	8	15	40	170	8-Φ21	8-Φ21	127.7	180	480	390	400	10
KSWC315	390	300	40	8	15	42	190	10-Φ23	10-Φ23	137.5	203	565	435	533	11.6
KSWC350	435	335	40	10	16	47	210	10-Φ23	10-Φ23	165.2	219	630	480	721	16.8
KSWC390	480	385	70	10	18	50	230	10-Φ25	10-Φ25	177.24	245	695	520	1013	19.4
KSWC440	550	420	80	12	20	60	280	16-Φ28	10-Φ28	201.25	273	735	600	1410	25
KSWC490	595	450	90	15	22.5	60	290	16-Φ31	14-Φ31	225.25	325	810	650	2040	31.3

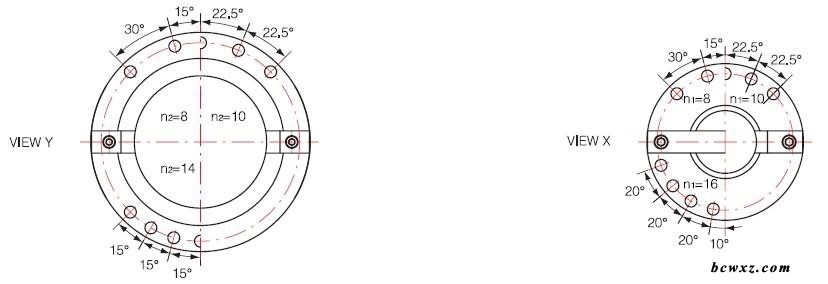

Type	Gyration diameter Dfx/Dfy	torque Tn kn.m	Fatigue torque Tp kn.m	Axis angle β(°)	Expansion capacity Lv(mm)	Size(mm)
Type	Gyration diameter Dfx/Dfy	torque Tn kn.m	Fatigue torque Tp kn.m	Axis angle β(°)	Expansion capacity Lv(mm)	Lmin	Dfx	D1x	D2x	bx	tx	gx	Kx	Lm(x)	Dfy	Ly
KSWC225	225/315	56	28	5°/15°	650	920	225	196	105	32	5	9	20	125	315	190
KSWC250	250/330	80	40		700	1020	250	218	115	40	5	12.5	25	140	330	200
KSWC285	285/390	120	58		750	1140	285	245	135	40	7	15	27	160	390	230
KSWC315	315/435	160	80		750	1300	315	280	150	40	7	15	32	180	435	250
KSWC350	350/480	225	110		800	1445	350	310	165	50	8	16	35	195	480	290
KSWC390	390/520	320	160		800	1605	390	345	185	70	8	18	40	215	520	320
KSWC440	440/600	500	250		900	1760	435	385	200	80	10	20	42	260	600	390
KSWC490	490/650	700	350		900	1955	480	425	225	90	12	22.5	47	290	650	410

Type	Size(mm)													weight(kg)
Type	D1y	D2y	by	ty	gy	Ky	Lm(y)	n1-d1	n2-d2	S	D3	V	Ry	Lmin	increase 100mm
KSWC225	285	220	32	5	9	28	140	8-Φ17	8-Φ17	102.18	146	395	315	215	6.4
KSWC250	315	240	40	7	12.5	30	150	8-Φ19	8-Φ19	117.72	159	435	330	283	8.5
KSWC285	355	270	40	8	15	40	170	8-Φ21	8-Φ21	127.7	180	480	390	400	10
KSWC315	390	300	40	8	15	42	190	10-Φ23	10-Φ23	137.5	203	565	435	533	11.6
KSWC350	435	335	40	10	16	47	210	10-Φ23	10-Φ23	165.2	219	630	480	721	16.8
KSWC390	480	385	70	10	18	50	230	10-Φ25	10-Φ25	177.24	245	695	520	1013	19.4
KSWC440	550	420	80	12	20	60	280	16-Φ28	10-Φ28	201.25	273	735	600	1410	25
KSWC490	595	450	90	15	22.5	60	290	16-Φ31	14-Φ31	225.25	325	810	650	2040	31.3

1. Length Lmin is the minimum allowable length, and the actual size can be determined according to needs: ≥Lmin

2. Expansion Lv can be determined according to the actual size

3. The above data are for reference only

Key words:

Tunnel Shafts (KSWC)

Flange Diamelers(mm)：225-490 Torque Range(nm)：56000-700000 Our unique and self engineered tunnel shaft,KSWCC design is a very popular choice for Daniel style mills,vertical applications,and other applicattions which involves long length compensation in limited length space.
